Selecting the right traffic cone for UAE conditions requires understanding local regulations, environmental challenges, and performance requirements. This comprehensive guide examines traffic cone specifications across height, base materials, and reflective banding standards, providing practical insights for procurement managers, safety officers, and contractors operating in the UAE’s demanding climate.
Whether you’re managing construction zones on Sheikh Zayed Road or organizing temporary events in Dubai, choosing appropriate road safety cones directly impacts both compliance and safety outcomes. The UAE’s extreme temperatures, frequent sandstorms, and high-wind conditions create unique challenges that standard traffic cone specifications must address.
Traffic Cone Regulations in the UAE
Dubai RTA and Abu Dhabi ITC Standards
The UAE follows a regulatory framework primarily based on British Standard BS EN 13422, with specific adaptations for local conditions. Dubai’s Roads and Transport Authority (RTA) and Abu Dhabi’s Integrated Transport Centre (ITC) have implemented traffic detour executive regulations that require proper traffic cone deployment for all construction and maintenance activities.
Under the Abu Dhabi Traffic Detour Executive Regulations, implemented in October 2020, any work within the right-of-way requires a traffic permit from the ITC. Violations for deploying traffic cones without proper permits can result in significant penalties, including project delays and fines.
Approved Cone Heights and Applications
The UAE traffic cone height regulations specify minimum requirements based on road classification and speed limits. The regulatory framework recognizes six primary cone heights:
- 300mm cones: Commercial and private property use only
- 450mm cones: Limited road use in urban areas
- 500mm cones: Standard road applications up to 80 km/h
- 750mm cones: Highway-approved for speeds up to 100 km/h
- 900mm cones: Required for high-speed highways exceeding 100 km/h
- 1000mm cones: Expressway and major highway applications
UAE-Specific Compliance Requirements
Traffic cones used on UAE roads must comply with specific environmental resistance standards. The intense UV radiation, with peak levels occurring in July and August, requires enhanced UV stabilizers in cone materials. Road surface temperatures can exceed 60°C during summer months, placing additional thermal stress on traffic cone materials.
The UAE’s sustainability initiatives also influence cone selection. The country’s commitment to recycling, demonstrated through projects like the rubberized asphalt program that has processed over six million used tires since 2010, encourages the use of recycled rubber bases in traffic cone construction.
Cone Height: 500mm vs. 1000mm—Where Each Fits Best
500mm Traffic Cone Applications
The 500mm traffic cone represents the standard choice for most UAE road applications. With a minimum weight requirement of 1.3kg and a 380mm base diameter, these cones provide adequate visibility for secondary roads and construction zones with speed limits up to 80 km/h.
Ideal Use Cases for 500mm Cones:
- Urban construction projects
- Temporary lane closures on local roads
- Event management in residential areas
- Utility work on secondary streets
- Shopping center parking lot management
The 500mm height provides sufficient visibility for drivers while remaining manageable for workers who frequently deploy and retrieve cones. In UAE conditions, these cones typically require additional base weighting to combat the frequent strong winds that can exceed 40 km/h.
1000mm Traffic Cone Requirements
The 1000mm traffic cone is mandatory for UAE expressways and major highways where speeds exceed 100 km/h. These cones require a minimum weight of 4.8kg and feature a 490mm base diameter for enhanced stability.
Mandatory Applications for 1000mm Cones:
- Sheikh Zayed Road traffic management
- Highway construction and maintenance
- Major arterial road projects
- Emergency response on expressways
- Bridge construction and repair work
The increased height ensures visibility from greater distances, critical for high-speed traffic scenarios. However, the larger size presents challenges for storage and transportation, requiring specialized cone carriers or mounts on work vehicles.
Speed Limit Considerations
The relationship between cone height and speed limits reflects driver reaction time and stopping distance requirements. At 120 km/h, vehicles require approximately 120 meters to stop, making the enhanced visibility of 1000mm cones essential for safety.
Research on UAE road conditions shows that cone displacement due to vehicle wake turbulence increases significantly at speeds above 100 km/h. The heavier base requirements for larger cones directly address this challenge.

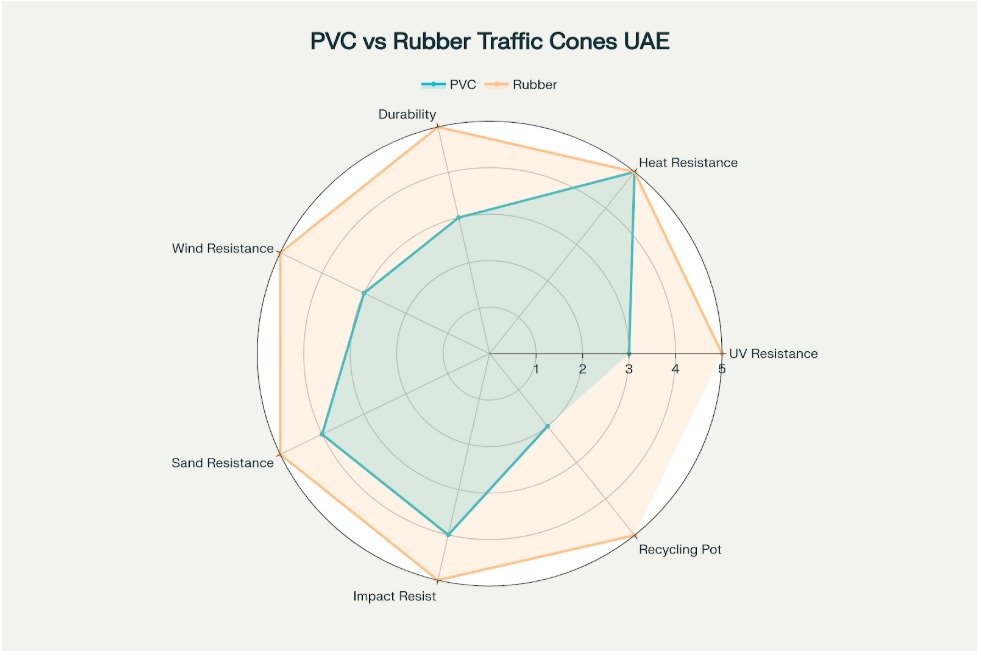

Base Materials: Recycled Rubber or PVC?
PVC Cone Performance in UAE Climate
PVC traffic cones offer cost-effective solutions for many UAE applications. Modern PVC formulations include UV stabilizers that prevent degradation under intense desert sun exposure. These cones maintain structural integrity at temperatures up to 65°C without deformation.
PVC Advantages:
- Lower initial cost ($15-25 per cone)
- Excellent heat resistance
- Lightweight design (2.5-3.5kg for 750mm cones)
- Superior reflective tape adhesion
- Stackable design for efficient storage
PVC Limitations in UAE Conditions:
- Requires regular cleaning due to sand accumulation
- Moderate wind resistance necessitates heavier bases
- Limited recycling options at end of life
- Color fading over 2-3 years requires replacement
Recycled Rubber Base Benefits
Recycled rubber bases demonstrate superior performance in UAE’s challenging environment. The material’s natural flexibility and density provide enhanced stability and durability compared to PVC alternatives.
Rubber Base Advantages:
- Excellent UV resistance without additives
- Superior wind resistance (heavier, more stable)
- Enhanced sand resistance through textured surface
- Longer lifespan (3-5 years typical)
- High recyclability supporting UAE sustainability goals
Rubber Base Considerations:
- Higher initial cost ($25-40 per cone)
- Increased weight (3.5-5.5kg for 750mm cones)
- Requires proper surface preparation for tape adhesion
Environmental Impact and Sustainability
The UAE’s commitment to environmental sustainability, demonstrated through initiatives like the Bee’ah tire recycling facility that processes 4,000 used tires daily, supports the use of recycled rubber in traffic cone construction. This approach aligns with the country’s circular economy objectives while providing superior performance in desert conditions.
Recycled rubber bases contribute to the UAE’s waste reduction goals while offering enhanced performance characteristics. The material’s thermal mass helps prevent heat-related deformation, a common issue with lower-quality PVC cones during summer months.
Reflective Band Standards: Day and Night Visibility
BS EN 13422 Reflective Classifications
The UAE follows BS EN 13422 standards for traffic cone reflectivity, with specific classifications based on cone height and application. Understanding these classifications ensures proper cone selection for different visibility requirements.
R1A and R1B Classifications:
- Minimum retroreflectivity: 70 cd/lx/m²
- Suitable for 300-750mm cones
- R1B provides enhanced durability (3-4 years vs 2-3 years)
- Standard for urban and secondary road applications
R2A and R2B Classifications:
- Minimum retroreflectivity: 180 cd/lx/m²
- Required for 750-1000mm highway cones
- R2B offers superior longevity (5-7 years)
- Mandatory for high-speed highway applications
MUTCD Standard Integration
While the UAE primarily follows BS EN 13422, understanding MUTCD standards provides context for international compatibility. MUTCD specifications require 6-inch white bands placed 3-4 inches from the cone top, with additional 4-inch bands positioned 2 inches below.
The MUTCD’s emphasis on white reflective banding aligns with UAE preferences, though local regulations permit limited use of yellow reflective materials for specific applications.
Reflective Tape Performance in UAE Conditions
The UAE’s extreme climate conditions significantly impact reflective tape performance. Surface temperatures exceeding 60°C can affect adhesive strength, while constant sand abrasion gradually degrades reflective properties.
Key Performance Factors:
- Heat affects adhesive bond strength
- Sand abrasion reduces retroreflectivity over time
- Thermal expansion can cause tape misalignment
- UV exposure accelerates material degradation
Quality reflective tapes designed for UAE conditions include enhanced adhesive formulations and protective coatings that maintain performance despite environmental challenges.
Base Weight and Stability: What Prevents Displacement
Wind Resistance Requirements
The UAE’s frequent high-wind conditions, particularly during seasonal weather changes, require careful consideration of cone base weight and design. Testing shows that traffic cones must maintain stability in winds exceeding 40 km/h to meet safety standards.
Stability Factors:
- Base weight distribution affects wind resistance
- Cone height influences wind loading
- Base diameter impacts stability footprint
- Material density affects overall center of gravity

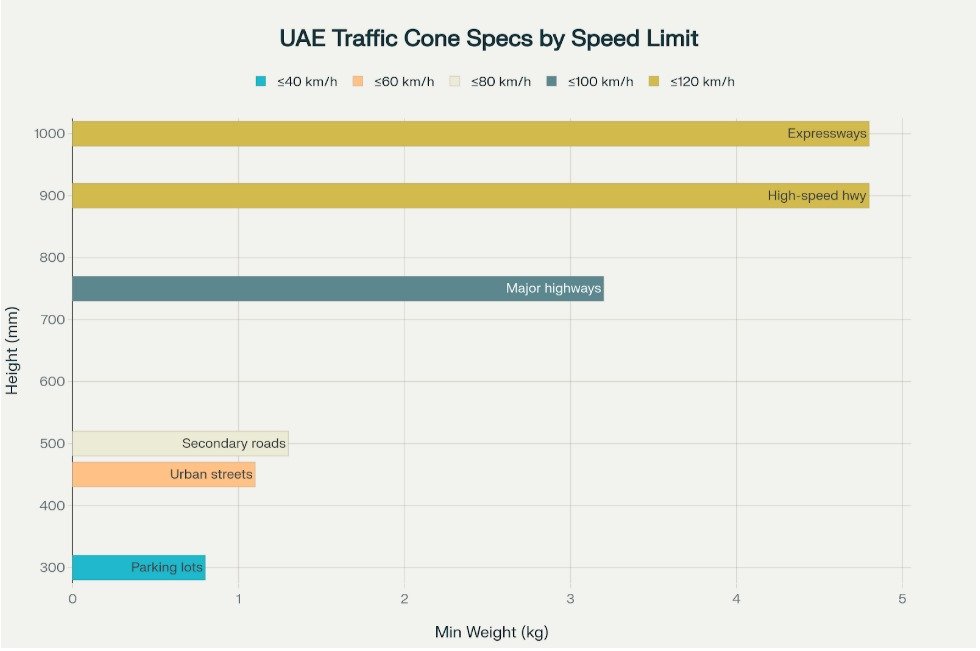

Weight Classifications and Applications
UAE traffic cone regulations specify minimum weight requirements based on cone height and application. These requirements reflect the relationship between cone size, wind loading, and stability needs.
Weight Requirements by Height:
- 300mm cones: 0.8kg minimum
- 500mm cones: 1.3kg minimum
- 750mm cones: 3.2kg minimum
- 1000mm cones: 4.8kg minimum
Enhanced Stability Solutions
For applications requiring additional stability, several solutions improve cone performance in high-wind conditions:
- Weighted Base Inserts: Sand or water-filled bases increase stability
- Rubber Base Upgrades: Heavier rubber bases provide superior wind resistance
- Interlocking Systems: Chain or tape connections between cones
- Aerodynamic Design: Streamlined shapes reduce wind loading
Using Warning Tape With Traffic Cones
Regulatory Compliance for Warning Tape
Warning tape used with traffic cones in the UAE must meet specific visibility and durability standards. The tape serves as both a physical barrier and visual guide, connecting individual cones into continuous delineation systems.
Approved Warning Tape Specifications:
- Minimum 50mm width for standard applications
- High-visibility colors (orange, red, yellow)
- UV-resistant materials for outdoor use
- Reflective options for night visibility
Deployment Procedures
Proper warning tape deployment with traffic cones requires systematic approach to ensure effectiveness and regulatory compliance:
- Site Assessment: Evaluate wind conditions and cone spacing requirements
- Cone Placement: Position cones at appropriate intervals (typically 6-12 feet urban, 20-40 feet highway)
- Tape Installation: Attach warning tape at consistent height (typically 900mm)
- Tension Management: Maintain appropriate tape tension to prevent sagging
- End Anchoring: Secure tape ends to prevent displacement
Maintenance and Inspection
Warning tape requires regular inspection to maintain effectiveness. UV exposure, wind stress, and physical impact can compromise tape integrity over time.
Inspection Schedule:
- Daily visual checks during active deployment
- Weekly detailed inspection for damage
- Monthly tape tension adjustment
- Quarterly replacement assessment
Selecting the Right Cone for the Task
Construction Sector Requirements
Construction projects in the UAE require traffic cones that withstand heavy equipment operation, debris impact, and constant repositioning. The harsh construction environment demands durable materials and enhanced visibility features.
Construction Cone Specifications:
- Minimum 500mm height for road-adjacent work
- Heavy-duty base construction (preferably rubber)
- Enhanced reflective banding for equipment visibility
- Impact-resistant materials for durability
Parking and Event Management
Temporary events and parking management require different cone characteristics than permanent road installations. Portability, storage efficiency, and cost-effectiveness become primary considerations.
Event Management Considerations:
- Lightweight design for easy handling
- Stackable construction for efficient storage
- Moderate height requirements (300-500mm typical)
- Cost-effective materials for temporary use
Utility and Emergency Services
Utility work and emergency response require rapid deployment capabilities with maximum visibility. These applications often involve night work and high-traffic environments.
Utility Sector Requirements:
- Quick deployment and retrieval systems
- Enhanced reflective properties for night work
- Stable bases for roadside positioning
- Compatibility with warning tape and barriers
Inspection, Maintenance, and Replacement
UAE-Specific Maintenance Challenges
The UAE’s extreme climate creates unique maintenance challenges for traffic cones. Intense UV radiation, thermal cycling, and sand abrasion accelerate wear patterns compared to temperate climates.
Climate-Related Wear Factors:
- UV degradation peaks during July-August
- Thermal expansion effects on tape alignment
- Sand abrasion on reflective surfaces
- Heat stress on adhesive bonds
Maintenance Schedule and Procedures
Effective traffic cone maintenance requires systematic inspection and proactive replacement strategies. The maintenance schedule must account for UAE’s environmental conditions and usage patterns.
Recommended Inspection Frequency:
- Weekly: Surface contamination and cleanliness
- Monthly: Structural integrity and reflective properties
- Quarterly: UV degradation and heat stress indicators
- Annually: Comprehensive condition assessment
Replacement Indicators
Knowing when to replace traffic cones ensures maintained safety performance while optimizing costs. Federal Highway Administration guidelines require cones to remain in “like new” condition, with faded, torn, or contaminated cones requiring immediate replacement.
Replacement Criteria:
- Color fading exceeding 50% of original intensity
- Structural damage compromising stability
- Reflective tape failure or degradation
- Base material deterioration affecting stability
Storage Best Practices
Proper storage extends traffic cone lifespan by protecting materials from unnecessary environmental exposure. UAE storage conditions require climate control and protection from direct sunlight.
Storage Guidelines:
- Temperature-controlled environment below 40°C
- Protection from direct UV exposure
- Proper stacking to prevent deformation
- Ventilation to prevent moisture accumulation
- Separation materials to prevent adhesion
Frequently Asked Questions
Sheikh Zayed Road requires 900mm or 1000mm traffic cones due to its high-speed classification (120 km/h). The Dubai RTA mandates minimum 900mm cones for highways exceeding 100 km/h, with 1000mm cones recommended for maximum visibility and compliance.
PVC traffic cones typically last 2-3 years in UAE outdoor conditions with proper maintenance. However, cones exposed to direct sunlight and extreme temperatures may require replacement sooner due to UV degradation and thermal stress. Regular inspection and cleaning can extend lifespan.
Class R1B reflective tape offers enhanced durability (3-4 years vs 2-3 years) while maintaining the same minimum retroreflectivity (70 cd/lx/m²) as R1A. The R1B classification provides better adhesion and weather resistance, making it preferable for UAE conditions.
Heavier bases provide superior stability in high-wind conditions but increase handling difficulty and transportation costs. The optimal base weight depends on application: lighter bases suit temporary indoor use, while heavier bases are essential for highway applications and windy environments.
No, warning tape used with traffic cones must meet UAE safety standards including minimum width (50mm), high-visibility colors, and UV resistance. Only approved warning tape that complies with local regulations should be used with traffic cones.
While the same physical cones can be used day and night, nighttime applications require enhanced reflective properties. R2A or R2B classified reflective tape provides superior visibility in low-light conditions, while standard R1A/R1B tape may suffice for daytime-only applications.
Conclusion
Making Informed Traffic Cone Decisions for UAE Applications
Selecting appropriate traffic cones for UAE conditions requires balancing regulatory compliance, environmental performance, and practical deployment considerations. The extreme climate conditions, stringent safety requirements, and diverse application scenarios across the Emirates demand careful evaluation of cone specifications.
Key Selection Criteria Summary
The decision between 500mm and 1000mm traffic cones primarily depends on speed limits and road classification. Urban applications and secondary roads typically require 500mm cones, while highway work on major arteries like Sheikh Zayed Road mandates 1000mm cones for optimal visibility and regulatory compliance.
Base material selection between PVC and recycled rubber involves weighing initial costs against long-term performance. While PVC offers lower upfront investment, recycled rubber bases provide superior durability and stability in UAE’s challenging wind conditions, ultimately delivering better value over the cone’s operational lifespan.
Reflective tape standards cannot be compromised, as they directly impact nighttime visibility and worker safety. Investing in R2A or R2B classifications for highway applications ensures compliance while providing enhanced durability against UV exposure and thermal stress.
Strategic Implementation Recommendations
Organizations deploying traffic cones across UAE projects should develop standardized procurement criteria that prioritize:
- Regulatory Compliance: Ensure all cone specifications meet Dubai RTA and Abu Dhabi ITC requirements
- Environmental Suitability: Select materials and weights appropriate for local wind and temperature conditions
- Lifecycle Cost Analysis: Consider total ownership costs including maintenance, replacement, and disposal
- Operational Efficiency: Choose cone systems that balance safety performance with deployment practicality
Maintenance and Compliance Commitment
The UAE’s extreme climate accelerates wear patterns, making proactive maintenance essential for sustained performance. Organizations must implement systematic inspection schedules, replacing cones before visible deterioration compromises safety or regulatory compliance.
Regular training for deployment personnel ensures proper warning tape installation, appropriate cone spacing, and recognition of replacement indicators. This investment in human resources multiplies the effectiveness of quality equipment selection.
Future Considerations
As the UAE continues advancing its sustainability initiatives and smart city developments, traffic cone selection should align with broader environmental goals. The country’s commitment to circular economy principles supports choosing recycled materials while maintaining uncompromising safety standards.
Emerging technologies, including smart cone systems with integrated lighting or communication capabilities, may complement traditional reflective solutions. However, fundamental principles of height, stability, and visibility remain constant regardless of technological enhancements.
Final Recommendations
Success in UAE traffic cone deployment depends on understanding that no single solution fits all applications. Construction managers, safety officers, and procurement professionals must evaluate each project’s specific requirements against the comprehensive factors outlined in this guide.
The investment in proper traffic cone selection pays dividends through enhanced worker safety, regulatory compliance, and operational efficiency. In the UAE’s dynamic construction and infrastructure environment, these considerations directly impact project success and organizational reputation.
By following the specifications and guidelines presented in this comprehensive guide, organizations can confidently select, deploy, and maintain traffic cone systems that meet both current requirements and future challenges in the UAE’s evolving transportation landscape.
This guide provides comprehensive information for traffic cone selection and deployment in UAE conditions. For specific project requirements, consult with local authorities and certified traffic safety professionals to ensure full regulatory compliance.
